Spedix round 12A ESC flashed with SimonK program for 250-300 size multirotors. It is designed to fit and hide in the arms of Spedix S250 quadcopter and hexacopter.

This ESC has a bright red or green LED light to indicate the orientation of a multirotor.

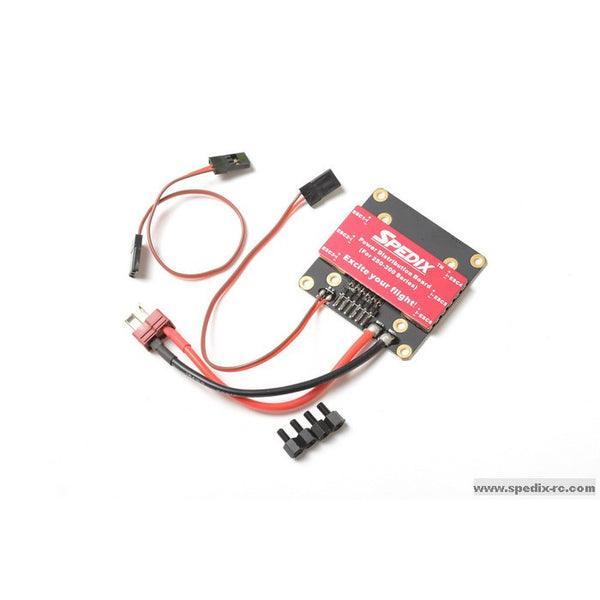

This product does not come with a BEC unit. We recommend to use the Spedix power distribution board to power up receiver and flight controller.

Wires for motor and battery are pre-soldered with 2mm gold plated bullet connectors.

The definition of radio signal wires is brown for ground (-), yellow for signal.

Description:

Continuous Current: 12A(Max 18A@10S)

Voltage Range: 2-4S LiPo

Firmware:SimonK

Dimensions: Φ23x5.5mm(exclude capacitor)

BEC Output: None

Refresh Rate: 600Hz

Motor Wires: 20 gauge soft silicone wires

Battery Wires: 20 gauge soft silicone wires

Weight: 16g (approx. including wires)

Diameter: 28mm (approx. including capacitor)

LED light color: red / green

Flashed with SimonK program,quick response, smooth throttle.

Has a bright red LED light to indicate the orientation of a multirotor.

Package Includes:
1 x Round 12A ESC Red/Green
