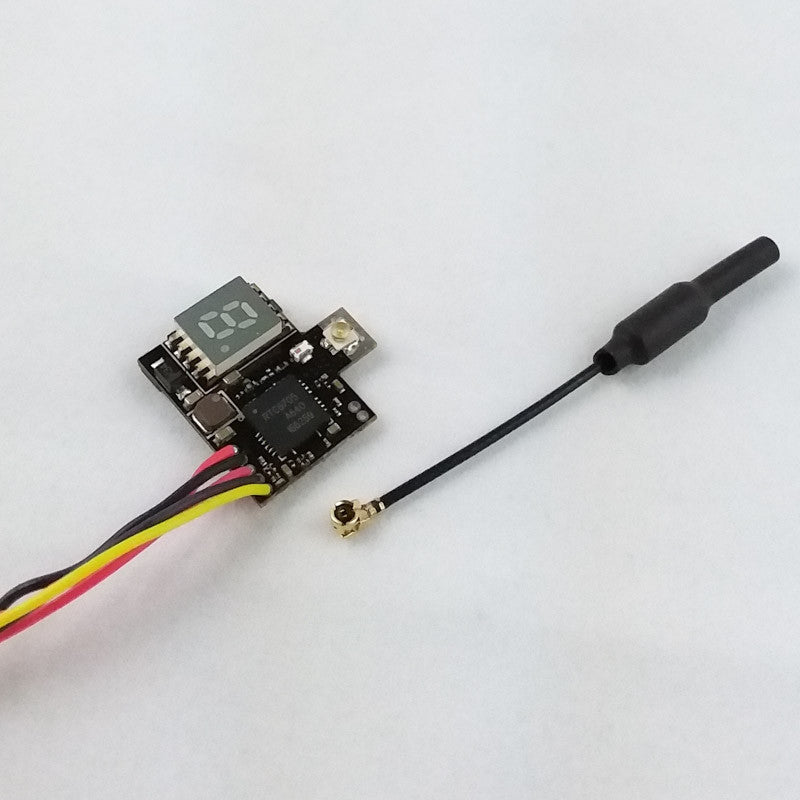

Eachine VTX01 Super Mini 5.8Ghz 25mW FPV Transmitter

$12.00 USD
SKU: VTX01
Specificaiton:
  • Output power: 25mW
  • Input voltage: 3.2-5.5V
  • 5V camera supply, 300mA (MAX)
  • Video system: NTSC/PAL
  • Antenna dimensions: 55mm x 5mm diameter
  • Antenna: IPEX
  • Frequency: 5.8GHz bands 40 channel, with Raceband: 5658-5917MHz
  • Size: 20*14mm (L*W)
  • Weight: 2.8g

Operation:
  • Three adjustable gears, on/off switch, CH, FR automatically cycle display three gears on LED after power on.
  • Short press button to adjust "CH" , 1-8 adjustable.
  • Press and hold button 2s, transfer to FR, A, B, E, F, R adjustable, then short press button to adjust FR.
  • Press and hold button 5s to adjust on/off, "0" stands for "off", and "=" stands for "on".

Feature:
  • Super mini size and light weight
  • Five bands 40 channels with Raceband, show on LED Digital Display

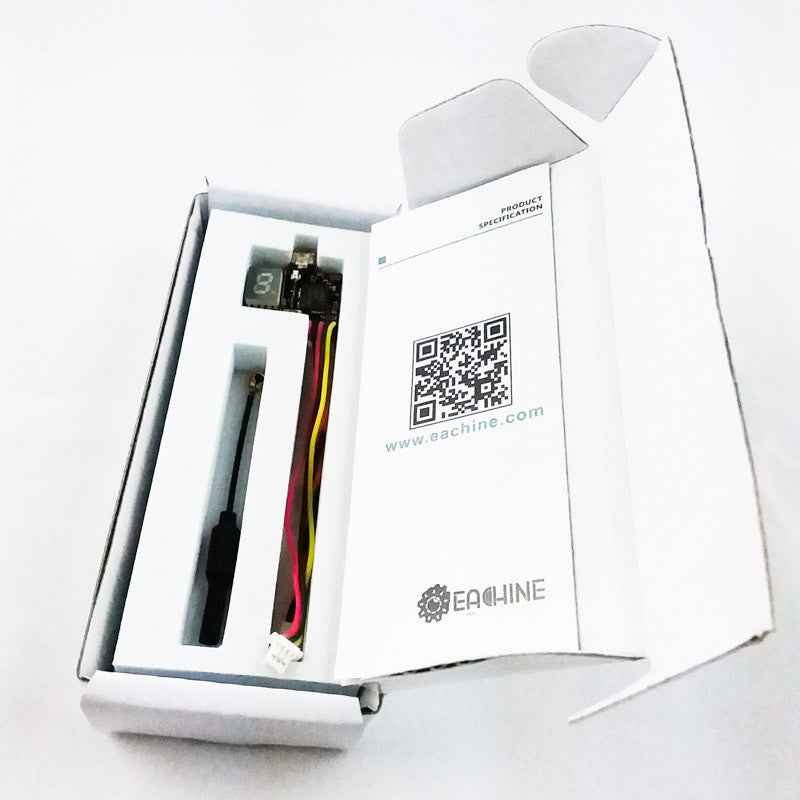

Package Included:
  • 1 X Transmitter module
  • 1 X IPEX antenna
