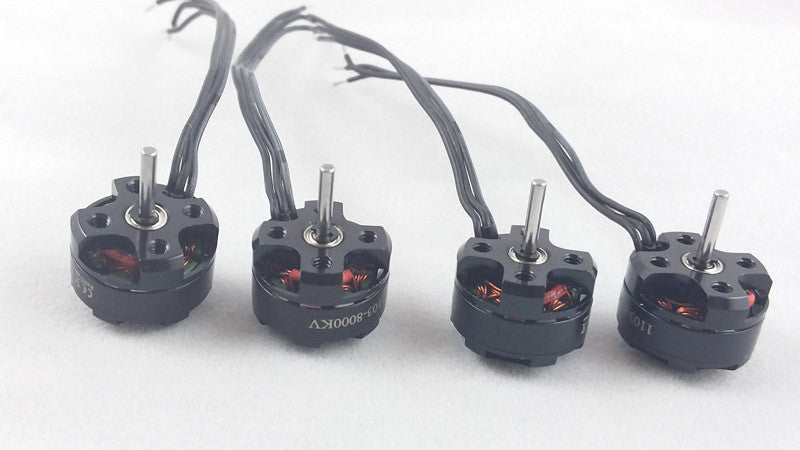

Unique reverse shaft 1103 8000Kv or 10000Kv brushless motors, made by DYS, using NSK and mult-core 3pin PU wire.
1103R 8000Kv Specifications:
KV.................................................................................................8000
Configuration....................................................................................NP
Stator Diameter............................................................................11mm
Reverse Shaft Length...................................................................8mm
Shaft Diameter............................................................................1.5mm
Motor Dimensions(Dia.*Len)..................................................Φ14×9.5mm
Weight (g)....................................................................................3.51g
No.of Cells(Lipo).............................................................................2-3S
Max Continuous current(A)...............................................................3.2A
Max Continuous Power(W).............................................................35.5W
Internal resistance........................................................................0.06Ω
Also available in Amazon USA store.
1103R 10000Kv Specifications:
KV.................................................................................................10000
Configuration....................................................................................NP
Stator Diameter............................................................................11mm
Reverse Shaft Length...................................................................8mm
Shaft Diameter............................................................................1.5mm
Motor Dimensions(Dia.*Len)..................................................Φ14×9.5mm
Weight (g)....................................................................................3.51g
No.of Cells(Lipo).............................................................................2-3S
Max Continuous current(A)...............................................................7.7A
Max Continuous Power(W).............................................................85.5W
Internal resistance........................................................................0.35Ω
Also available in Amazon USA store.
